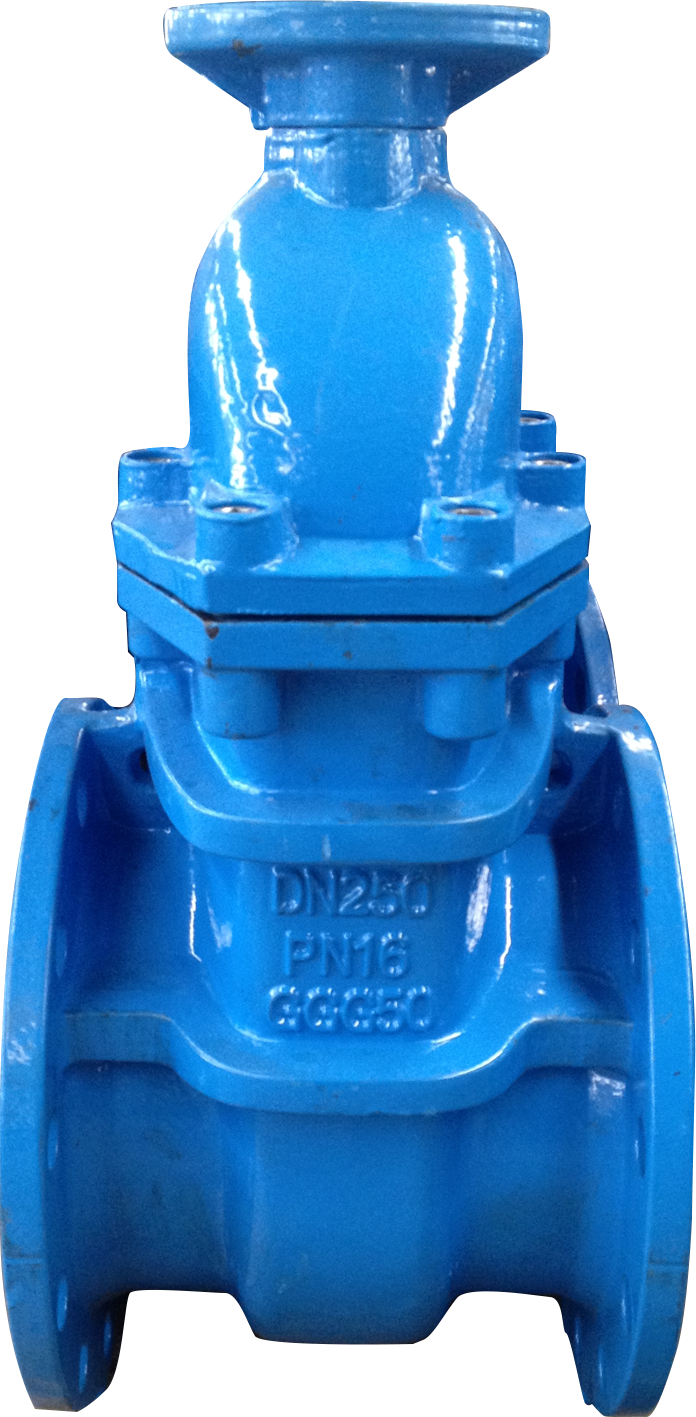

Metal Faced Gate Valve
BRYMFGV-001
Technical Specification
Nominal pressure
1.6MPa
Shell pressure
2.4MPa
Seat pressure
1.76MPa
Suitable medium
Water
Temperature
＜ 100°C
Design/ Manufacture
Conforms to BS5163 Type B
Face to face dimension
Conforms to series 3 of BS EN558-1
Flange
Drilled - conforms to BS EN1092
